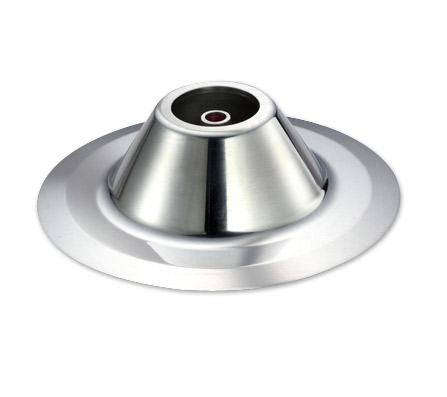

DISCO Automatic System

Products Description:

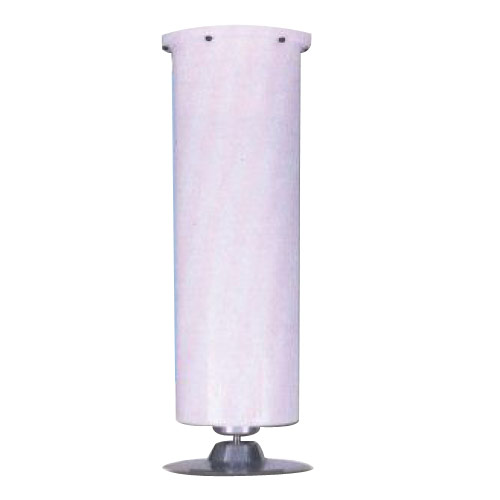

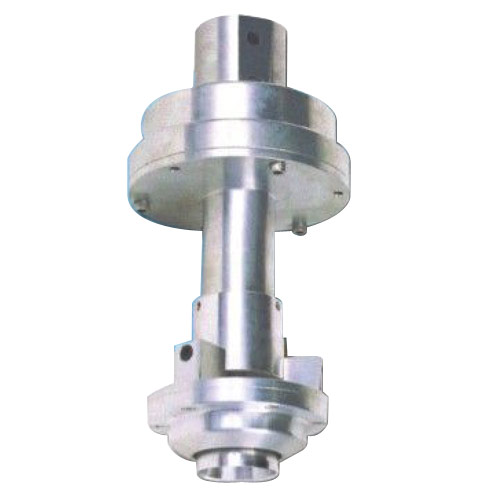

Turbo Disk Rotating Speed: 1500rpm(Max.)	High Speed Model Rotating Speed: 35000rpm(Max.)

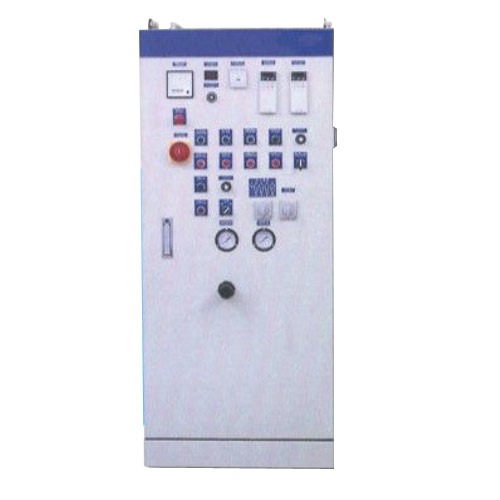

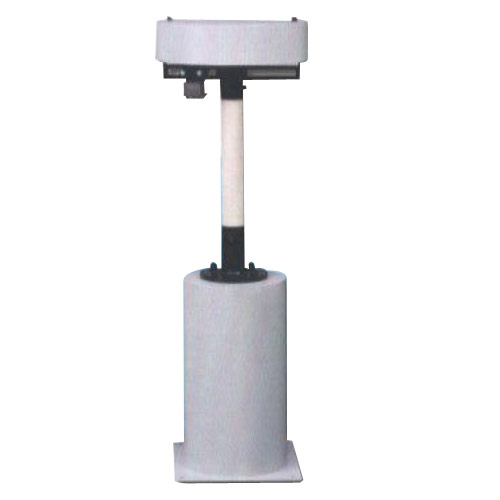

Control Cabinet Power Source: AC220V.3P.60HZ/5kw	Paint Supply Unit Supply Capacity: 200-1600cc/min

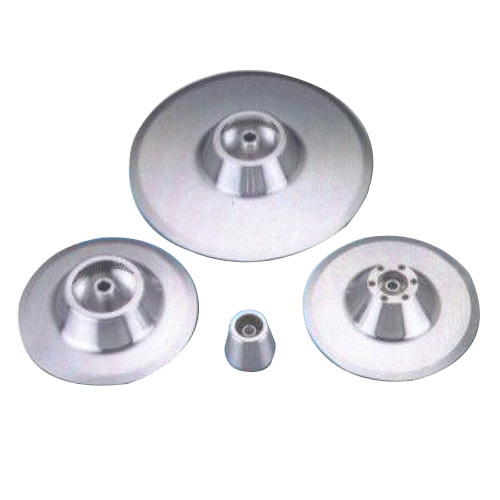

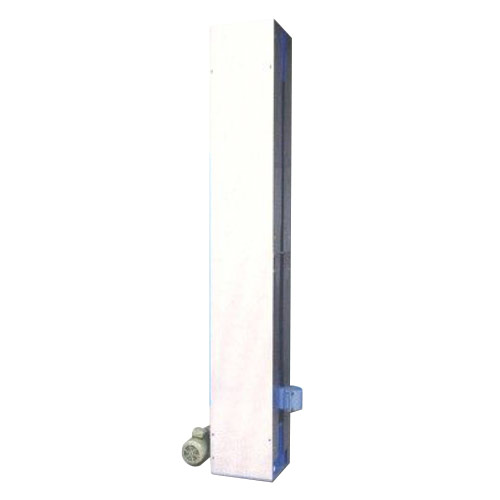

Vertical Transverse M/C Stroke: 1.2m/1.8m/2.4m	Misting Disk Dia: 50mm/170mm/175mm/250mm

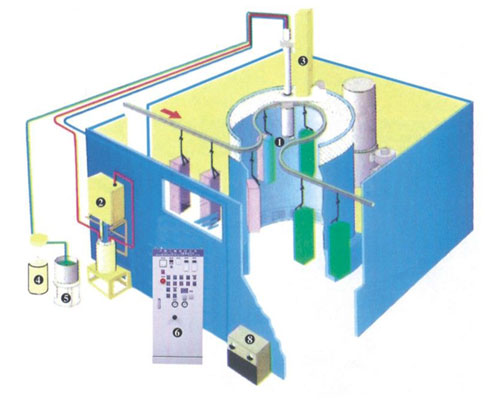

Round Disk Installed Example:
1. Round Disk
2. H.D. Power Generator
3. Vertical Transverse M/C
4. Paint Pump
5.Paint Supply Unit
6. Control Cabinet
7. Air Piping/Paint Piping/H.V. Cable
8. Refrigerated Air Dryer

Bicycle Frame Coating	Hardware Coating
